GE R400020E PR1025 Grade PVD Carbide, Indexable Grooving Insert
$56.55
(No reviews yet)
Write a Review
GE R400020E PR1025 Grade PVD Carbide, Indexable Grooving Insert
GE R400020E PR1025 Grade PVD Carbide, 4.00mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- GE
- Insert Size:
- 400020
- Insert Grade:
- PR1025
- Material:
- Carbide
- Coating Process:
- PVD

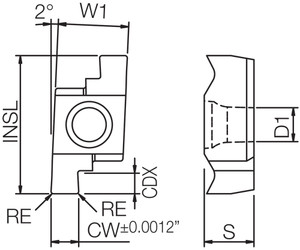

- [S] Thickness (mm):
- 5.56
- [RE] Corner Radius (mm):
- 0.20
- [INSL] Insert Length (mm):
- 21.66
- Application:
- Internal Grooving
- Hand:
- Right-Hand
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 5.50
- [CWN] Cutting Width Minimum (mm):
- 4.00
- [CWX] Cutting Width Maximum (mm):
- 4.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Internal Grooving
- Feature 2:
- 2-edge
- Feature 3:
- 2 Cutting Edges
- Feature 4:
- TiCN base PVD coated micro-grain carbide
- Feature 5:
- Application: General purpose cutting of steel and stainless steel, stable and long tool life
- ANSI Part Number:
- GER400020EPR1025
- ISO Part Number:
- GER400-020E
- US Stock:
- 430
- Worldwide Stock:
- 0
- Old Material Number:
- 8825841
- Compatible Toolholder (Partial):
- SIGER...E-EH
- [S] Thickness:
- 7/32"
- [RE] Corner Radius:
- 0.008"
- [INSL] Insert Length (Decimal Inch):
- 0.8528
- [CW] Cutting Width (Decimal Inch):
- 0.1575
- [CW] Cutting Width (mm):
- 4.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.2165
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1575
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1575
- Series Description (PeopleSoft):
- SIGE Grooving
- Series Description:
- SIGE Grooving
