GFVR 2020K501B, Face Grooving Toolholder

GFVR 2020K501B, Face Grooving Toolholder

SKU:
THC04946
|
UPC:
4960664009749
$250.54
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
GFVR 2020K501B, Right-Hand, GFV Style, Face Grooving Toolholder with a 4.60mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
GFV
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Right-Hand

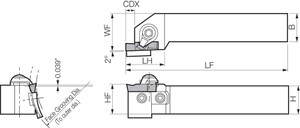

[CDX] Max Depth of Cut (mm):
4.60
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
3.50
[DAXN] Minimum Face Groove Diameter (mm):
50.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
2.7559
[DAXX] Maximum Face Groove Diameter (mm):
70.00
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Right-Hand GVFR250-020B, GVFR300-020B, GVFR350-020B, GVFR250-020B, GVFR300-020B, GVFR300-150BR style inserts
ANSI Part Number:
GFVR2020K501B
ISO Part Number:
GFVR2020K-501B
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
GVFR250-020B, GVFR300-020B, GVFR350-020B, GVFR250-020B, GVFR300-020B, GVFR300-150BR
Old Material Number:
8810903
Clamp Set:
CPS-6V
Wrench (for Clamp Screw):
LW-3
[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
28.00
[CW] Cutting Width (Decimal Inch):
0.0984 - 0.1378
[CW] Cutting Width (mm):
2.50 - 3.50
[CDX] Max Depth of Cut (Decimal Inch):
0.1811
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.1378
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
1.9685
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.1024
