GFVR 2525M1502C, Face Grooving Toolholder
$267.28
(No reviews yet)
Write a Review
GFVR 2525M1502C, Face Grooving Toolholder
GFVR 2525M1502C, Right-Hand, GFV Style, Face Grooving Toolholder with a 8.10mm Max Depth of Cut for Face Grooving Applications
- Tool Style:
- GFV
- Material:
- Steel
- Grooving Type:
- External Face Grooving
- Application:
- Face Grooving
- Hand:
- Right-Hand
- [CDX] Max Depth of Cut (mm):
- 8.10
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 6.00
- [DAXN] Minimum Face Groove Diameter (mm):
- 150.00
- [DAXX] Maximum Face Groove Diameter (Decimal Inch):
- 9.8425
- [DAXX] Maximum Face Groove Diameter (mm):
- 250.00
- [H] Shank Height (mm):
- 25.00
- [B] Shank Width (mm):
- 25.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Great for various Face Grooving applications
- Feature 2:
- Compatible with Right-Hand GVFR500-040C, GVFR550-040C, GVFR600-040C style inserts
- ANSI Part Number:
- GFVR2525M1502C
- ISO Part Number:
- GFVR2525M-1502C
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- GVFR500-040C, GVFR550-040C, GVFR600-040C
- Old Material Number:
- 8806260
- Clamp Set:
- CPS-8V
- Wrench (for Clamp Screw):
- LW-4
- Compatible Blade (Partial):
- n/a

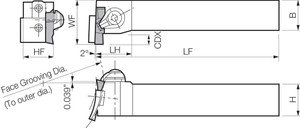

- [LF] Functional Length (mm):
- 150.00
- [LH] Head Length (mm):
- 35.00
- [CW] Cutting Width (Decimal Inch):
- 0.1969 - 0.2362
- [CW] Cutting Width (mm):
- 5.00 - 6.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.3189
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.2362
- [DAXN] Minimum Face Groove Diameter (Decimal Inch):
- 5.9055
- [H] Shank Height (Decimal Inch):
- 0.9843
- [B] Shank Width (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 5.9055
- [LH] Head Length (Decimal Inch):
- 1.3780
