GFVSL 12502B, Face Grooving Toolholder

GFVSL 12502B, Face Grooving Toolholder

SKU:
THC89798
|
UPC:
4960664662807
$300.67
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
GFVSL 12502B, Left-Hand, GFVS Style, Face Grooving Toolholder with a 0.2008" Max Depth of Cut for Face Grooving Applications

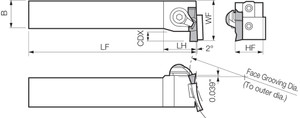

Additional Information
Tool Style:
GFVS
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Left-Hand
[CDX] Max Depth of Cut (mm):
5.10
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
4.90
[DAXN] Minimum Face Groove Diameter (mm):
50.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
2.7559
[DAXX] Maximum Face Groove Diameter (mm):
70.00
[H] Shank Height (mm):
19.05
[B] Shank Width (mm):
19.05
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
inch
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Right-Hand GVFR400-020B, GVFR430-020B, GVFR460-020B, GVFR490-020B, GVFR400-020B, GVFR400-200BR style inserts
ANSI Part Number:
GFVSL12502B
ISO Part Number:
GFVSL12-502B
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GVFR400-020B, GVFR430-020B, GVFR460-020B, GVFR490-020B, GVFR400-020B, GVFR400-200BR
Old Material Number:
8837066
Clamp Set:
CPS-6V
Blade:
SFL-502B
Blade Screw:
HH4X12
Wrench (for Clamp Screw):
LW-3
Compatible Blade (Partial):
SFL502B
[LF] Functional Length (mm):
127.00
[LH] Head Length (mm):
29.97
Product Notes:
Right-hand Insert for Left-hand Toolholder
[CW] Cutting Width (Decimal Inch):
0.1575 - 0.1929
[CW] Cutting Width (mm):
4.00 - 4.90
[CDX] Max Depth of Cut (Decimal Inch):
0.2008
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1929
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
1.9685
[H] Shank Height (Decimal Inch):
0.7500
[B] Shank Width (Decimal Inch):
0.7500
[LF] Functional Length (Decimal Inch):
5.0000
[LH] Head Length (Decimal Inch):
1.1799
