GFVSR 161501C, Face Grooving Toolholder

GFVSR 161501C, Face Grooving Toolholder

SKU:
THC89821
|
UPC:
4960664663033
$317.40
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GFVSR 161501C, Right-Hand, GFVS Style, Face Grooving Toolholder with a 0.2600" Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
GFVS
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
6.60
[CWN] Cutting Width Minimum (mm):
3.50
[CWX] Cutting Width Maximum (mm):
4.50
[DAXN] Minimum Face Groove Diameter (mm):
150.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
9.8425
[DAXX] Maximum Face Groove Diameter (mm):
250.00
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
inch
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Left-Hand GVFL350-040C, GVFL400-040C, GVFL450-040C, GVFL350-020C, GVFL400-020C, GVFL350-040C, GVFL400-040C style inserts
ANSI Part Number:
GFVSR161501C
ISO Part Number:
GFVSR16-1501C
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GVFL350-040C, GVFL400-040C, GVFL450-040C, GVFL350-020C, GVFL400-020C, GVFL350-040C, GVFL400-040C
Old Material Number:
8837095
Clamp Set:
CPS-8V
Blade:
SFR-1501C
Blade Screw:
HH4X12
Wrench (for Clamp Screw):
LW-4
Compatible Blade (Partial):
SFR1501C

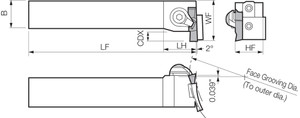

[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
35.05
Product Notes:
Left-hand Insert for Right-hand Toolholder
[CW] Cutting Width (Decimal Inch):
0.1378 - 0.1772
[CW] Cutting Width (mm):
3.50 - 4.50
[CDX] Max Depth of Cut (Decimal Inch):
0.2598
[CWN] Cutting Width Minimum (Decimal Inch):
0.1378
[CWX] Cutting Width Maximum (Decimal Inch):
0.1772
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
5.9055
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.3799
