GFVSR 2020KHB, Face Grooving Toolholder
$250.54
(No reviews yet)
Write a Review
GFVSR 2020KHB, Face Grooving Toolholder
GFVSR 2020KHB, Right-Hand, GFVS Style, Face Grooving Toolholder with a 5.10mm Max Depth of Cut for Face Grooving Applications
- Tool Style:
- GFVS
- Material:
- Steel
- Grooving Type:
- External Face Grooving
- Application:
- Face Grooving
- Hand:
- Right-Hand

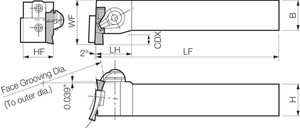

- [CDX] Max Depth of Cut (mm):
- 5.10
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Great for various Face Grooving applications
- Feature 2:
- Compatible with Right-Hand SFR351B, SFR352B, SFR501B, SFR502B, SFR701B, SFR702B style blades
- ANSI Part Number:
- GFVSR2020KHB
- ISO Part Number:
- GFVSR2020K-HB
- US Stock:
- 0
- Worldwide Stock:
- 12
- Compatible Inserts (Partial):
- Blade Reliant
- Old Material Number:
- 8806267
- Compatible Blade (Partial):
- SFR351B, SFR352B, SFR501B, SFR502B, SFR701B, SFR702B
- Compatible Toolholder (Partial):
- GFVSR2020K…B
- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 30.00
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.2008
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 1.1811
