GFVTL 16701B, Face Grooving Toolholder

GFVTL 16701B, Face Grooving Toolholder

SKU:
THC89844
|
UPC:
4960664663262
$317.40
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GFVTL 16701B, Left-Hand, GFVT Style, Face Grooving Toolholder with a 0.1811" Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
GFVT
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Left-Hand

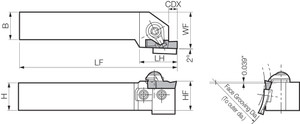

[CDX] Max Depth of Cut (mm):
4.60
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
3.50
[DAXN] Minimum Face Groove Diameter (mm):
70.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
3.9370
[DAXX] Maximum Face Groove Diameter (mm):
100.00
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
inch
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Right-Hand GVFR250-020B, GVFR300-020B, GVFR350-020B, GVFR250-020B, GVFR300-020B, GVFR300-150BR style inserts
ANSI Part Number:
GFVTL16701B
ISO Part Number:
GFVTL16-701B
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GVFR250-020B, GVFR300-020B, GVFR350-020B, GVFR250-020B, GVFR300-020B, GVFR300-150BR
Old Material Number:
8837126
Clamp Set:
CPS-6V
Blade:
SFL-701B
Blade Screw:
HH4X12
Wrench (for Clamp Screw):
LW-3
Compatible Blade (Partial):
SFL701B
[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
24.89
Product Notes:
Right-hand Insert for Left-hand Toolholder
[CW] Cutting Width (Decimal Inch):
0.0984 - 0.1378
[CW] Cutting Width (mm):
2.50 - 3.50
[CDX] Max Depth of Cut (Decimal Inch):
0.1811
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.1378
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
2.7559
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
0.9799
