GFVTR 16HC, Face Grooving Toolholder
$267.28
(No reviews yet)
Write a Review
GFVTR 16HC, Face Grooving Toolholder
GFVTR 16HC, Right-Hand, GFVT Style, Face Grooving Toolholder with a 0.3189" Max Depth of Cut for Face Grooving Applications
- Tool Style:
- GFVT
- Material:
- Steel
- Grooving Type:
- External Face Grooving
- Application:
- Face Grooving
- Hand:
- Right-Hand

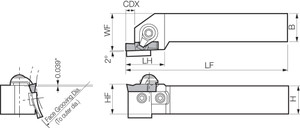

- [CDX] Max Depth of Cut (mm):
- 8.10
- [H] Shank Height (mm):
- 25.40
- [B] Shank Width (mm):
- 25.40
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- inch
- Feature 1:
- Great for various Face Grooving applications
- Feature 2:
- Compatible with Right-Hand SFR501C, SFR502C, SFR701C, SFR702C, SFR1001C, SFR1002C, SFR1501C, SFR1502C style blades
- ANSI Part Number:
- GFVTR16HC
- ISO Part Number:
- GFVTR16-HC
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- Blade Reliant
- Old Material Number:
- 8837154
- Compatible Blade (Partial):
- SFR501C, SFR502C, SFR701C, SFR702C, SFR1001C, SFR1002C, SFR1501C, SFR1502C
- Compatible Toolholder (Partial):
- GVTR16-…B
- [LF] Functional Length (mm):
- 152.40
- [LH] Head Length (mm):
- 35.05
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.3189
- [H] Shank Height (Decimal Inch):
- 1.0000
- [B] Shank Width (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 6.0000
- [LH] Head Length (Decimal Inch):
- 1.3799
