GFVTR 2525MHB, Face Grooving Toolholder
$267.28
(No reviews yet)
Write a Review
GFVTR 2525MHB, Face Grooving Toolholder
GFVTR 2525MHB, Right-Hand, GFVT Style, Face Grooving Toolholder with a 4.60mm Max Depth of Cut for Face Grooving Applications
- Tool Style:
- GFVT
- Material:
- Steel
- Grooving Type:
- External Face Grooving
- Application:
- Face Grooving
- Hand:
- Right-Hand

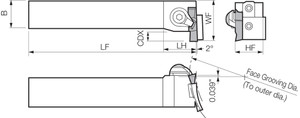

- [CDX] Max Depth of Cut (mm):
- 4.60
- [H] Shank Height (mm):
- 25.00
- [B] Shank Width (mm):
- 25.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Top Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Great for various Face Grooving applications
- Feature 2:
- Compatible with Right-Hand SFR351B, SFR352B, SFR501B, SFR502B, SFR701B, SFR702B style blades
- ANSI Part Number:
- GFVTR2525MHB
- ISO Part Number:
- GFVTR2525M-HB
- US Stock:
- 0
- Worldwide Stock:
- 47
- Compatible Inserts (Partial):
- Blade Reliant
- Old Material Number:
- 8806276
- Compatible Blade (Partial):
- SFR351B, SFR352B, SFR501B, SFR502B, SFR701B, SFR702B
- Compatible Toolholder (Partial):
- GFVTR2525M-…B
- [LF] Functional Length (mm):
- 150.00
- [LH] Head Length (mm):
- 32.00
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.1811
- [H] Shank Height (Decimal Inch):
- 0.9843
- [B] Shank Width (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 5.9055
- [LH] Head Length (Decimal Inch):
- 1.2598
