GH 402005 TC60 Grade Uncoated Cermet, Indexable Grooving Insert

GH 402005 TC60 Grade Uncoated Cermet, Indexable Grooving Insert

SKU:
TSB01505
$32.52
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
GH 402005 TC60 Grade Uncoated Cermet, 4.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel
Additional Information
Tool Style:
GH
Insert Size:
402005
Insert Grade:
TC60
Material:
Cermet
Coating Process:
Uncoated

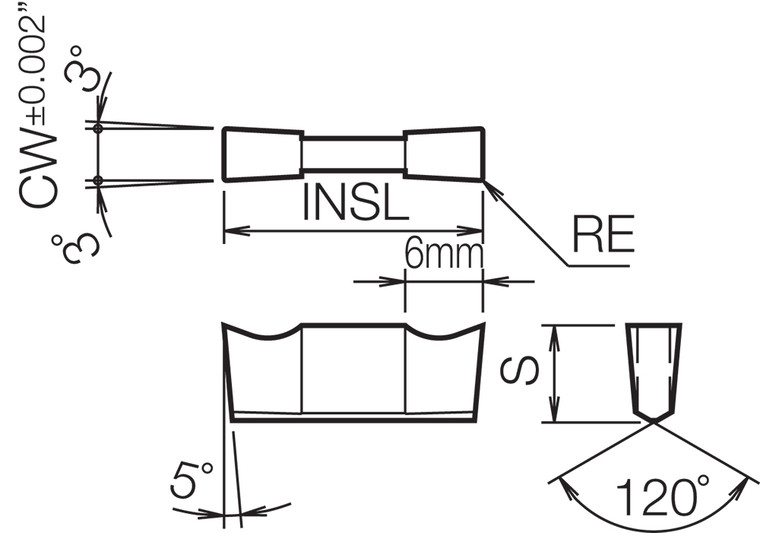

[S] Thickness (mm):
7.50
[RE] Corner Radius (mm):
0.50
[INSL] Insert Length (mm):
20.00
Application:
External Deep Grooving|External Grooving|Internal Large Diameter Deep Grooving
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
13.00
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
4.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Deep Grooving, Internal Large Diameter Deep Grooving
Feature 2:
Ground Chipbreaker
Feature 3:
2 Cutting Edges
Feature 4:
Excellent surface finish cermet grade for stable machining
Feature 5:
Application: For milling, grooving, and threading of steel and stainless steel
ANSI Part Number:
GH402005TC60
ISO Part Number:
GH4020-05
Old Material Number:
8807645
Compatible Toolholder (Partial):
KGHR...4, KGHL...4, KGHSR...4, KGHSL...4, KIGHR...B-4
[S] Thickness:
0.295"
[RE] Corner Radius:
0.020"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1575
[CW] Cutting Width (mm):
4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.5118
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
