GH 502002 TC60 Grade Uncoated Cermet, Indexable Grooving Insert
$35.36
(No reviews yet)
Write a Review
GH 502002 TC60 Grade Uncoated Cermet, Indexable Grooving Insert
GH 502002 TC60 Grade Uncoated Cermet, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel
- Tool Style:
- GH
- Insert Size:
- 502002
- Insert Grade:
- TC60
- Material:
- Cermet
- Coating Process:
- Uncoated

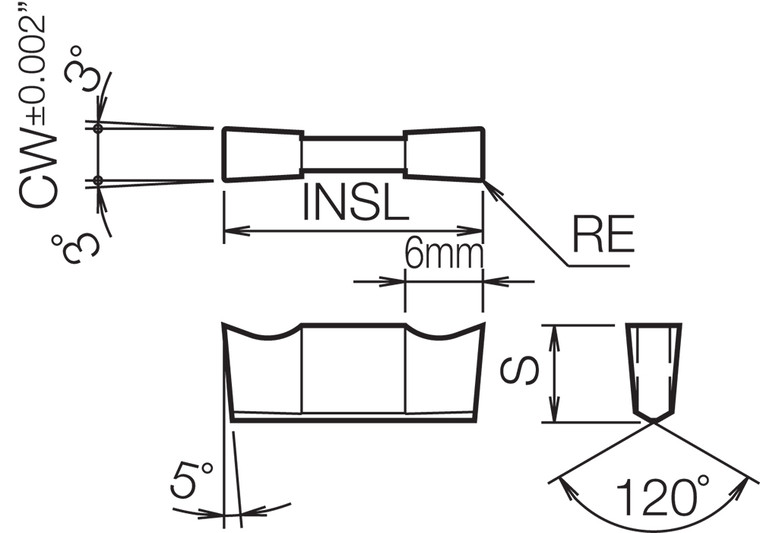

- [S] Thickness (mm):
- 7.50
- [RE] Corner Radius (mm):
- 0.20
- [INSL] Insert Length (mm):
- 20.00
- Application:
- External Deep Grooving|External Grooving|Internal Large Diameter Deep Grooving
- Hand:
- Neutral
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 13.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Deep Grooving, Internal Large Diameter Deep Grooving
- Feature 2:
- Ground Chipbreaker
- Feature 3:
- 2 Cutting Edges
- Feature 4:
- Excellent surface finish cermet grade for stable machining
- Feature 5:
- Application: For milling, grooving, and threading of steel and stainless steel
- ANSI Part Number:
- GH502002TC60
- ISO Part Number:
- GH5020-02
- Old Material Number:
- 8811026
- Compatible Toolholder (Partial):
- KGHR...5, KGHL...5, KGHSR...5, KGHSL...5, KIGHR...B-5
- [S] Thickness:
- 0.295"
- [RE] Corner Radius:
- 0.008"
- [INSL] Insert Length (Decimal Inch):
- 0.7874
- [CW] Cutting Width (Decimal Inch):
- 0.1969
- [CW] Cutting Width (mm):
- 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.5118
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
