GH 502005 A65 Grade Uncoated Ceramic, Indexable Grooving Insert
$42.68
(No reviews yet)
Write a Review
GH 502005 A65 Grade Uncoated Ceramic, Indexable Grooving Insert
GH 502005 A65 Grade Uncoated Ceramic, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing in (K) Cast Iron and (H) Hardened Materials
- Tool Style:
- GH
- Insert Size:
- 502005
- Insert Grade:
- A65
- Material:
- Ceramic
- Coating Process:
- Uncoated

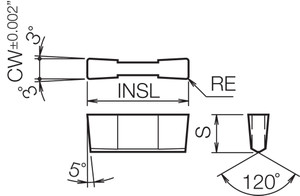

- [S] Thickness (mm):
- 7.50
- [RE] Corner Radius (mm):
- 0.50
- [INSL] Insert Length (mm):
- 20.00
- Application:
- External Deep Grooving|External Grooving|Internal Large Diameter Deep Grooving
- Hand:
- Neutral
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 13.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- Primary Workpiece Material:
- (K) Cast Iron
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Deep Grooving, Internal Large Diameter Deep Grooving
- Feature 2:
- Ceramic
- Feature 3:
- 2 Cutting Edges
- Feature 4:
- Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
- Feature 5:
- Application: Semi-roughing to finishing of steel, cast iron, and hard materials
- ANSI Part Number:
- GH502005A65
- ISO Part Number:
- GH5020-05
- Old Material Number:
- 8807013
- Compatible Toolholder (Partial):
- KGHR...5, KGHL...5, KGHSR...5, KGHSL...5, KIGHR...B-5
- [S] Thickness:
- 0.295"
- [RE] Corner Radius:
- 0.020"
- [INSL] Insert Length (Decimal Inch):
- 0.7874
- [CW] Cutting Width (Decimal Inch):
- 0.1969
- [CW] Cutting Width (mm):
- 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.5118
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
