GIFVR3532B201A, Face Grooving Toolholder

GIFVR3532B201A, Face Grooving Toolholder

SKU:
THC04712
|
UPC:
4960664251803
$284.05
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
GIFVR 3532B201A, Right-Hand, GIFV Style, Face Grooving Toolholder with a 2.20mm Max Depth of Cut for Face Grooving Applications
Additional Information

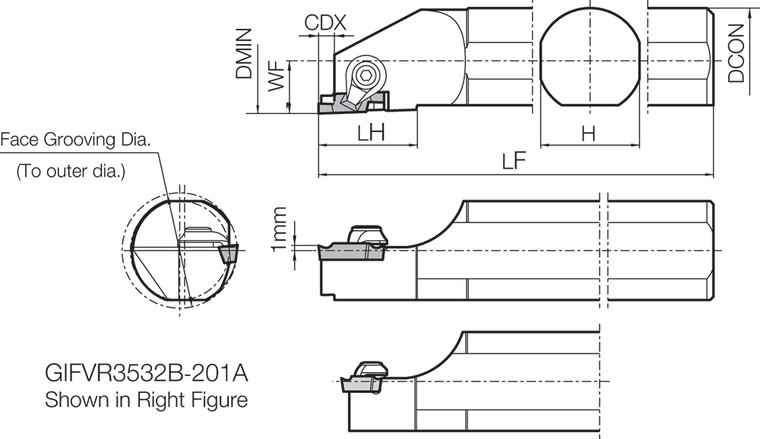

Tool Style:
GIFV
Material:
Steel
Grooving Type:
Internal Face Grooving
Application:
Face Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
2.20
[CWN] Cutting Width Minimum (mm):
2.00
[CWX] Cutting Width Maximum (mm):
3.40
[DAXN] Minimum Face Groove Diameter (mm):
35.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
No Maximum
[DAXX] Maximum Face Groove Diameter (mm):
No Maximum
[DMIN] Minimum Bore Diameter (mm):
35.00
[H] Shank Height (mm):
30.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Right-Hand GVFR200-020A, GVFR230-020A, GVFR250-020A, GVFR270-020A, GVFR290-020A, GVFR340-020A, GVFR200-100AR, GVFR250-125AR, GVFR300-150AR style inserts
ANSI Part Number:
GIFVR3532B201A
ISO Part Number:
GIFVR3532B-201A
US Stock:
0
Worldwide Stock:
8
Compatible Inserts (Partial):
GVFR200-020A, GVFR230-020A, GVFR250-020A, GVFR270-020A, GVFR290-020A, GVFR340-020A, GVFR200-100AR, GVFR250-125AR, GVFR300-150AR
Old Material Number:
8811086
Clamp Set:
CPS-5V
Wrench (for Clamp Screw):
FT-15
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
23.00
[CW] Cutting Width (Decimal Inch):
0.0787 - 0.1339
[CW] Cutting Width (mm):
2.00 - 3.40
[CDX] Max Depth of Cut (Decimal Inch):
0.0866
[CWN] Cutting Width Minimum (Decimal Inch):
0.0787
[CWX] Cutting Width Maximum (Decimal Inch):
0.1339
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
1.3780
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.3780
[H] Shank Height (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
0.9055
