GIFVR5032B501B, Face Grooving Toolholder

GIFVR5032B501B, Face Grooving Toolholder

SKU:
THC04718
|
UPC:
4960664251865
$310.72
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
GIFVR 5032B501B, Right-Hand, GIFV Style, Face Grooving Toolholder with a 4.60mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
GIFV
Material:
Steel
Grooving Type:
Internal Face Grooving
Application:
Face Grooving
Hand:
Right-Hand

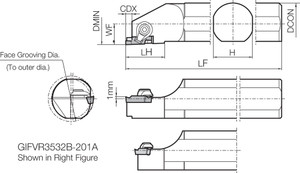

[CDX] Max Depth of Cut (mm):
4.60
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
3.50
[DAXN] Minimum Face Groove Diameter (mm):
50.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
2.7559
[DAXX] Maximum Face Groove Diameter (mm):
70.00
[DMIN] Minimum Bore Diameter (mm):
50.00
[H] Shank Height (mm):
30.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Right-Hand GVFR250-020B, GVFR300-020B, GVFR350-020B, GVFR250-020B, GVFR300-020B, GVFR300-150BR style inserts
ANSI Part Number:
GIFVR5032B501B
ISO Part Number:
GIFVR5032B-501B
US Stock:
2
Worldwide Stock:
1
Compatible Inserts (Partial):
GVFR250-020B, GVFR300-020B, GVFR350-020B, GVFR250-020B, GVFR300-020B, GVFR300-150BR
Old Material Number:
8811089
Clamp Set:
CPS-6V
Wrench (for Clamp Screw):
LW-3
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
30.00
[CW] Cutting Width (Decimal Inch):
0.0984 - 0.1378
[CW] Cutting Width (mm):
2.50 - 3.50
[CDX] Max Depth of Cut (Decimal Inch):
0.1811
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.1378
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
1.9685
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.9685
[H] Shank Height (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
1.1811
