GIFVR5032B502B, Face Grooving Toolholder

GIFVR5032B502B, Face Grooving Toolholder

SKU:
THC04721
|
UPC:
4960664251889
$310.72
(No reviews yet)
Width:
2.13 (in)
Height:
1.97 (in)
Depth:
11.69 (in)
Current Stock:
Adding to cart… The item has been added
Description
GIFVR 5032B502B, Right-Hand, GIFV Style, Face Grooving Toolholder with a 5.10mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
GIFV
Material:
Steel
Grooving Type:
Internal Face Grooving
Application:
Face Grooving
Hand:
Right-Hand

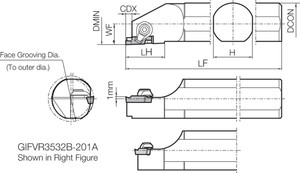

[CDX] Max Depth of Cut (mm):
5.10
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
4.90
[DAXN] Minimum Face Groove Diameter (mm):
50.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
2.7559
[DAXX] Maximum Face Groove Diameter (mm):
70.00
[DMIN] Minimum Bore Diameter (mm):
50.00
[H] Shank Height (mm):
30.00
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Right-Hand GVFR400-020B, GVFR430-020B, GVFR460-020B, GVFR490-020B, GVFR400-020B, GVFR400-200BR style inserts
ANSI Part Number:
GIFVR5032B502B
ISO Part Number:
GIFVR5032B-502B
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GVFR400-020B, GVFR430-020B, GVFR460-020B, GVFR490-020B, GVFR400-020B, GVFR400-200BR
Old Material Number:
8811091
Clamp Set:
CPS-6V
Wrench (for Clamp Screw):
LW-3
[LF] Functional Length (mm):
250.00
[LH] Head Length (mm):
30.00
[CW] Cutting Width (Decimal Inch):
0.1575 - 0.1929
[CW] Cutting Width (mm):
4.00 - 4.90
[CDX] Max Depth of Cut (Decimal Inch):
0.2008
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1929
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
1.9685
[DMIN] Minimum Bore Diameter (Decimal Inch):
1.9685
[H] Shank Height (Decimal Inch):
1.1811
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
9.8425
[LH] Head Length (Decimal Inch):
1.1811
