GMG 4020200RU PR930 Grade PVD Carbide, Indexable Grooving Insert

GMG 4020200RU PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT12310
$77.11
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GMG 4020200RU PR930 Grade PVD Carbide, 4.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GMG
Insert Size:
4020200
Chipbreaker:
RU
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

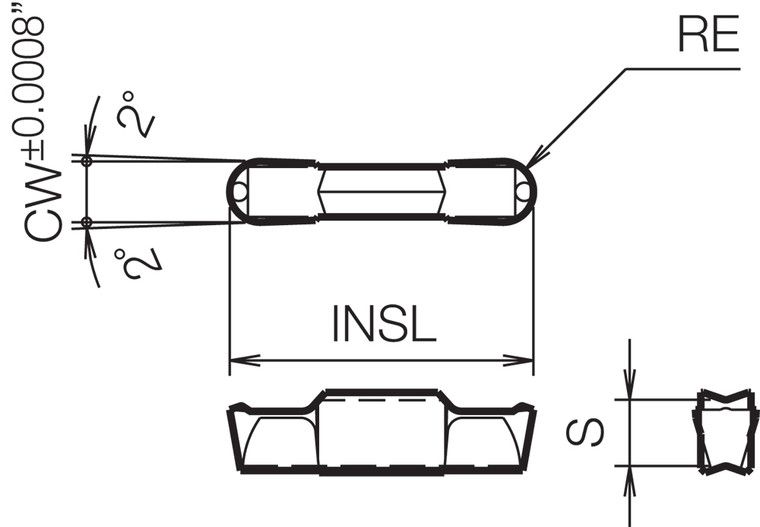

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
2.00
[INSL] Insert Length (mm):
20.00
Application:
External Grooving|Traversing|Undercutting
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
4.80
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
4.00
Primary Workpiece Material:
(P) Steel
Full Radius:
Yes
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Undercutting, Grooving, Traversing
Feature 2:
Undercutting / Chip Control Oriented
Feature 3:
2 Cutting Edges
Feature 4:
Hard TiCN base PVD coated super micro-grain carbide
Feature 5:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GMG4020200RUPR930
ISO Part Number:
GMG4020-200RU
Old Material Number:
8811171
Compatible Toolholder (Partial):
KGMMR...3, KGMML...3, KGMSR...3, KGMSL...3, KGMUR...20K, KGMUL...20K, KGMUR...25M, KGMUL...25M
[S] Thickness:
0.169"
[RE] Corner Radius:
5/64"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1575
[CW] Cutting Width (mm):
4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.1890
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
