GMG 5020040MS PR930 Grade PVD Carbide, Indexable Grooving Insert

GMG 5020040MS PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT12102
|
UPC:
4960664180028
$51.91
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GMG 5020040MS PR930 Grade PVD Carbide, 5.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GMG
Insert Size:
5020040
Chipbreaker:
MS
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

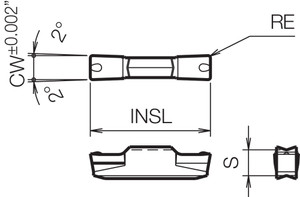

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
0.40
[INSL] Insert Length (mm):
20.00
Application:
External Grooving|Traversing
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
25.00
[CWN] Cutting Width Minimum (mm):
5.00
[CWX] Cutting Width Maximum (mm):
5.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving, Traversing
Feature 2:
Sharp Cutting Oriented, Precision Class
Feature 3:
2 Cutting Edges
Feature 4:
Hard TiCN base PVD coated super micro-grain carbide
Feature 5:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GMG5020040MSPR930
ISO Part Number:
GMG5020-040MS
US Stock:
0
Worldwide Stock:
400
Old Material Number:
8807285
Compatible Toolholder (Partial):
KGMR...-4(T), KGML...-4(T), KGMR...-5(T), KGML...-5(T), KGMMR...3, KGMML...3, KGMSR...3, KGMSL...3
[S] Thickness:
0.169"
[RE] Corner Radius:
1/64"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1969
[CW] Cutting Width (mm):
5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.9843
[CWN] Cutting Width Minimum (Decimal Inch):
0.1969
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
