GOMT 08T208ERD PR1210 Grade PVD Carbide, Indexable Milling Insert
$18.72
(No reviews yet)
Write a Review
GOMT 08T208ERD PR1210 Grade PVD Carbide, Indexable Milling Insert
GOMT 08T208ERD PR1210 Grade PVD Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron
- Tool Style:
- GOMT
- Insert Size:
- 08T208
- Chipbreaker:
- ER-D
- Insert Grade:
- PR1210
- Material:
- Carbide
- Coating Process:
- PVD

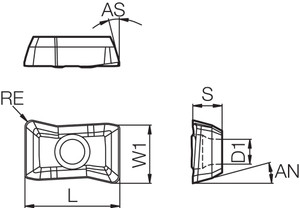

- [S] Thickness (mm):
- 2.78
- [RE] Corner Radius (mm):
- 0.80
- [INSL] Insert Length (mm):
- 8.70
- Application:
- Deep Slotting|Drilling|Facing|Pocketing|Shouldering|Slotting
- Hand:
- Right-Hand
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- n/a
- Primary Workpiece Material:
- (K) Gray Cast Iron|(K) Nodular Cast Iron
- Insert Shape:
- Parallelogram
- Number of Cutting Edges:
- 2
- Cutting Range:
- Roughing
- Insert Holding Method:
- Screw
- Feature 1:
- Insert for Facing, Shouldering, Slotting, Deep Slotting, Pocketing, Drilling
- Feature 2:
- Honed Edge with 2 Cutting Edges
- Feature 3:
- Superior wear and oxidation resistant MEGACOAT on special carbide substrate for cast iron
- Feature 4:
- Application: Highly efficient stable milling and drilling of gray and nodular cast iron and titanium alloys
- ANSI Part Number:
- GOMT08T208ERDPR1210
- ISO Part Number:
- GOMT08T208ER-D
- US Stock:
- 0
- Worldwide Stock:
- 10
- Old Material Number:
- 8833739
- Compatible Toolholder (Partial):
- MEY…-S16
- [S] Thickness:
- 0.109"
- [RE] Corner Radius:
- 1/32"
- [INSL] Insert Length (Decimal Inch):
- 0.3425
