GV L500C PR930 Grade PVD Carbide, Indexable Grooving Insert

GV L500C PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT08261
$64.35
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
GV L500C PR930 Grade PVD Carbide, 5.00mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GV
Insert Size:
500
Chipbreaker:
C
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

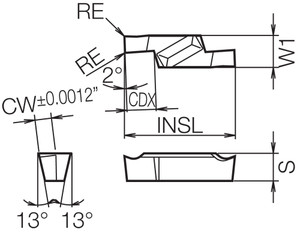

[S] Thickness (mm):
6.50
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
21.00
Application:
Internal Grooving|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
6.30
[CWN] Cutting Width Minimum (mm):
5.00
[CWX] Cutting Width Maximum (mm):
5.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Small Internal Grooving
Feature 2:
2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Hard TiCN base PVD coated super micro-grain carbide
Feature 5:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GVL500CPR930
ISO Part Number:
GVL500-020C
Old Material Number:
8811712
Compatible Toolholder (Partial):
GIVL…2C, GIVL…2CE, GIVL…2CW
[S] Thickness:
0.256"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.8268
[CW] Cutting Width (Decimal Inch):
0.1969
[CW] Cutting Width (mm):
5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2480
[CWN] Cutting Width Minimum (Decimal Inch):
0.1969
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
Series Description (PeopleSoft):
GV Internal Grooving
Series Description:
GV Internal Grooving
