GV R125A PR930 Grade PVD Carbide, Indexable Grooving Insert

GV R125A PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT07910
$51.54
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GV R125A PR930 Grade PVD Carbide, 1.25mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GV
Insert Size:
125
Chipbreaker:
A
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

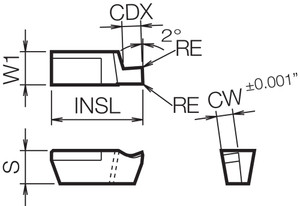

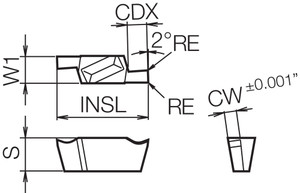

[S] Thickness (mm):
5.00
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
12.00
Application:
Internal Grooving|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.30
[CWN] Cutting Width Minimum (mm):
1.25
[CWX] Cutting Width Maximum (mm):
1.25
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Small Internal Grooving
Feature 2:
2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Hard TiCN base PVD coated super micro-grain carbide
Feature 5:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GVR125APR930
ISO Part Number:
GVR125-020A
Old Material Number:
8808275
Compatible Toolholder (Partial):
GIVR…1A, GIVR…1AE, GIVR…1AW
[S] Thickness:
0.197"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.4724
[CW] Cutting Width (Decimal Inch):
0.0492
[CW] Cutting Width (mm):
1.25
[CDX] Max Depth of Cut (Decimal Inch):
0.0906
[CWN] Cutting Width Minimum (Decimal Inch):
0.0492
[CWX] Cutting Width Maximum (Decimal Inch):
0.0492
Series Description (PeopleSoft):
GV Internal Grooving
Series Description:
GV Internal Grooving
