GV R145B TC40 Grade Uncoated Cermet, Indexable Grooving Insert

GV R145B TC40 Grade Uncoated Cermet, Indexable Grooving Insert

SKU:
TSM03120
$33.06
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GV R145B TC40 Grade Uncoated Cermet, 1.45mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (P) Steel and (K) Cast Iron
Additional Information
Tool Style:
GV
Insert Size:
145
Chipbreaker:
B
Insert Grade:
TC40
Material:
Cermet
Coating Process:
Uncoated

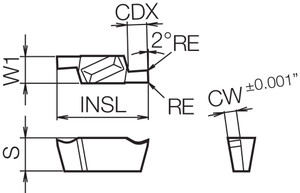

[S] Thickness (mm):
5.50
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
15.00
Application:
Internal Grooving|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.80
[CWN] Cutting Width Minimum (mm):
1.45
[CWX] Cutting Width Maximum (mm):
1.45
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Small Internal Grooving
Feature 2:
2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Good balance of wear resistance and toughness
Feature 5:
Application: Grooving and threading of steel
ANSI Part Number:
GVR145BTC40
ISO Part Number:
GVR145-020B
Old Material Number:
8807608
Compatible Toolholder (Partial):
GIVR…1B, GIVR…1BE, GIVR…1BW
[S] Thickness:
0.217"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.5906
[CW] Cutting Width (Decimal Inch):
0.0571
[CW] Cutting Width (mm):
1.45
[CDX] Max Depth of Cut (Decimal Inch):
0.1102
[CWN] Cutting Width Minimum (Decimal Inch):
0.0571
[CWX] Cutting Width Maximum (Decimal Inch):
0.0571
