GV R250020B PR1225 Grade PVD Carbide, Indexable Grooving Insert

GV R250020B PR1225 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKE15676
|
UPC:
4960664658664
$54.72
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GV R250020B PR1225 Grade PVD Carbide, 2.50mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GV
Insert Size:
250020
Chipbreaker:
B
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

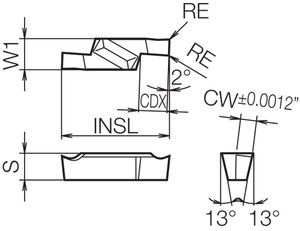

[S] Thickness (mm):
5.50
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
15.00
Application:
Internal Grooving|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
3.20
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
2.50
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Medium-Roughing
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Small Internal Grooving
Feature 2:
2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 5:
Application: Light interrupted to interrupted cutting of stainless steel
ANSI Part Number:
GVR250020BPR1225
ISO Part Number:
GVR250-020B
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8836926
Compatible Toolholder (Partial):
GIVR…1B, GIVR…1BE, GIVR…1BW
[S] Thickness:
0.217"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.5906
[CW] Cutting Width (Decimal Inch):
0.0984
[CW] Cutting Width (mm):
2.50
[CDX] Max Depth of Cut (Decimal Inch):
0.1260
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.0984
