GVF L500C PR930 Grade PVD Carbide, Indexable Grooving Insert
$68.66
(No reviews yet)
Write a Review
GVF L500C PR930 Grade PVD Carbide, Indexable Grooving Insert
GVF L500C PR930 Grade PVD Carbide, 5.00mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- GVF
- Insert Size:
- 500
- Chipbreaker:
- C
- Insert Grade:
- PR930
- Material:
- Carbide
- Coating Process:
- PVD

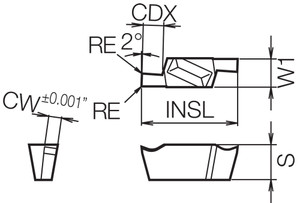

- [S] Thickness (mm):
- 7.00
- [RE] Corner Radius (mm):
- 0.40
- [INSL] Insert Length (mm):
- 27.00
- Application:
- Face Grooving
- Hand:
- Left-Hand
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 8.30
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Light Interruption
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Face Grooving
- Feature 2:
- 2 Cutting Edges
- Feature 3:
- Hard TiCN base PVD coated super micro-grain carbide
- Feature 4:
- Application: Low cutting speed, precise cutting with sharp edge
- ANSI Part Number:
- GVFL500CPR930
- ISO Part Number:
- GVFL500-040C
- US Stock:
- 30
- Worldwide Stock:
- 0
- Old Material Number:
- 8811442
- Compatible Toolholder (Partial):
- GFVL...-...2C, GFVSR...-...2C, GFVTR...-...2C, GIFVL...-...2C
- [S] Thickness:
- 0.276"
- [RE] Corner Radius:
- 1/64"
- [INSL] Insert Length (Decimal Inch):
- 1.0630
- [CW] Cutting Width (Decimal Inch):
- 0.1969
- [CW] Cutting Width (mm):
- 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.3268
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
- Series Description (PeopleSoft):
- GFV Grooving
