GVF R300B PR930 Grade PVD Carbide, Indexable Grooving Insert

GVF R300B PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT08510
$60.13
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
GVF R300B PR930 Grade PVD Carbide, 3.00mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GVF
Insert Size:
300
Chipbreaker:
B
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

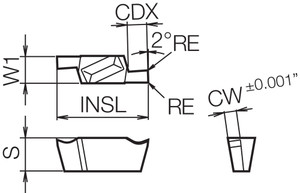

[S] Thickness (mm):
5.00
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
20.00
Application:
Face Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
4.80
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Face Grooving
Feature 2:
2 Cutting Edges
Feature 3:
Hard TiCN base PVD coated super micro-grain carbide
Feature 4:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GVFR300BPR930
ISO Part Number:
GVFR300-020B
Old Material Number:
8809782
Compatible Toolholder (Partial):
GFVR...-...1B, GFVSL...-...1B, GFVTL...-...1B, GIFVR...-...1B
[S] Thickness:
0.197"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.1890
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
