Internal EZTR 04003560004 PR1225 Grade PVD Carbide, Micro Threading Bar

Internal EZTR 04003560004 PR1225 Grade PVD Carbide, Micro Threading Bar

SKU:
TKB03602
|
UPC:
4960664674718
$48.93
(No reviews yet)
Width:
0.91 (in)
Height:
0.45 (in)
Depth:
3.07 (in)
Current Stock:
Adding to cart… The item has been added
Description
Internal EZTR 04003560004 PR1225 Grade PVD Carbide, Micro Threading Bar with a 4.00mm Minimum Bore Diameter for (M) Stainless Steel
Additional Information
Tool Style:
EZT
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

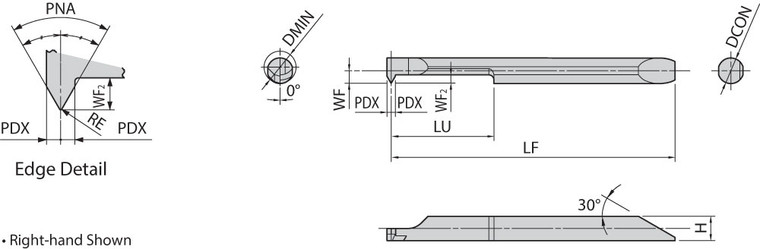

[RE] Corner Radius (mm):
0.04
Application:
Micro Internal Threading
Hand:
Right-Hand
[LU] Usable Length (mm):
11.00
Thread Type:
Internal
Primary Workpiece Material:
(M) Stainless Steel
[DMIN] Minimum Bore Diameter (mm):
4.00
[H] Shank Height (mm):
3.30
[DCON] Connection Diameter (mm):
3.50
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
PR1225 Grade Micro Threading EZ Bar for (M) Stainless Steel
Feature 2:
Minimum Bore Diameter 4.00mm
Feature 3:
Compatible with EZH…ST-…, EZH…HP-…EZH…CT-… Holders
ANSI Part Number:
EZTR04003560004PR1225
ISO Part Number:
EZTR040035-60-004
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8838307
Compatible Toolholder (Partial):
EZH…ST-…, EZH…HP-…EZH…CT-…
[LF] Functional Length (mm):
42.00
[RE] Corner Radius:
0.002"
[LU] Usable Length (Decimal Inch):
0.4331
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.1575
[H] Shank Height (Decimal Inch):
0.1299
[DCON] Connection Diameter (Decimal Inch):
0.1378
[LF] Functional Length (Decimal Inch):
1.6535
