KAVH20SCLCR09 Right-Hand, Interchangeable Boring Bar Head
$259.52
(No reviews yet)
Write a Review
KAVH20SCLCR09 Right-Hand, Interchangeable Boring Bar Head

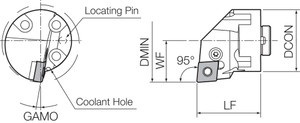

KAVH20SCLCR09 Right-Hand, 95 Degree Lead Angle, Positive Rake, Interchangeable Head with a 25.00mm Minimum Bore Diameter for Boring, Internal Facing Applications
- Tool Style:
- KAV-SCLC
- Material:
- Steel
- Application:
- Boring|Internal Facing
- Hand:
- Right-Hand
- Rake:
- Positive
- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 0.9843
- [DMIN] Minimum Bore Diameter (mm):
- 25.00
- [DCON] Connection Diameter (Decimal Inch):
- 0.7874
- [DCON] Connection Diameter (mm):
- 20.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Suppresses chattering with anti-vibration dampener system
- Feature 2:
- Wide range of applications with various interchangeable heads
- Feature 3:
- Great for large depths of cut and high feed rates
- ANSI Part Number:
- KAVH20SCLCR09
- ISO Part Number:
- KAVH20-SCLCR09
- Compatible Inserts (Partial):
- CC_T325…, CC_W325...
- Insert Screw:
- SB-4065TR
- Wrench (for Insert Screw):
- FT-15
- Compatible Boring Bar Adapter (Partial):
- KAV-D20, KAV-G20
- [LF] Functional Length (Decimal Inch):
- 0.7874
- [LF] Functional Length (mm):
- 20.00
