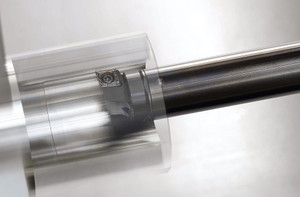

KAVH32PTFNL16 Left-Hand, Interchangeable Boring Bar Head

(No reviews yet) Write a Review

Write a Review

Close ×

KAVH32PTFNL16 Left-Hand, Interchangeable Boring Bar Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

THC15298

UPC:

Tool Style:

KAV-PTFN

Material:

Steel

Application:

Boring

Hand:

Left-Hand

Rake:

Negative

[KAPR] Tool Entering Angle (Degree):

91

Insert Shape:

60 Degree Triangle

[DMIN] Minimum Bore Diameter (Decimal Inch):

1.5748

[DMIN] Minimum Bore Diameter (mm):

40.00

[DCON] Connection Diameter (Decimal Inch):

1.2598

[DCON] Connection Diameter (mm):

32.00

Coolant Through (Yes/No):

Yes

Insert Holding Method:

Lever Lock / Lock Pin

Unit (inch/mm):

mm

Feature 1:

Suppresses chattering with anti-vibration dampener system

Feature 2:

Wide range of applications with various interchangeable heads

Feature 3:

Great for large depths of cut and high feed rates

ANSI Part Number:

KAVH32PTFNL16

ISO Part Number:

KAVH32-PTFNL16

Compatible Inserts (Partial):

TN_A33…, TN_G33…, TN_M33…

Shim:

LT-32N

Shim Pin:

LSP-1

Punch:

PC-1

Lever:

LL-1N

Lock Screw:

LS-1N

Wrench (for Lock Screw):

FH-2.5

Compatible Boring Bar Adapter (Partial):

KAV-D32…

[LF] Functional Length (Decimal Inch):

1.2598

[LF] Functional Length (mm):

32.00
