KFMSR 2525M65853, Face Grooving Toolholder

KFMSR 2525M65853, Face Grooving Toolholder

SKU:
THF00560
|
UPC:
4960664146536
$300.67
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
KFMSR 2525M65853, Right-Hand, KFMS Style, Face Grooving Toolholder with a 22.00mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
KFMS
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Right-Hand

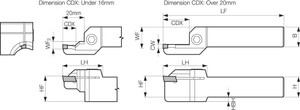

[CDX] Max Depth of Cut (mm):
22.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
[DAXN] Minimum Face Groove Diameter (mm):
65.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
3.3465
[DAXX] Maximum Face Groove Diameter (mm):
85.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Face Grooving applications
Feature 2:
Compatible with Neutral FMM30-03…, FMN3… style inserts
ANSI Part Number:
KFMSR2525M65853
ISO Part Number:
KFMSR2525M6585-3
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
FMM30-03…, FMN3…
Old Material Number:
8812153
Clamp Screw:
HH5X25
Wrench (for Clamp Screw):
LW-4
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
41.00
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.8661
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
2.5591
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.6142
