KGAR 2525M3, External Grooving Toolholder

KGAR 2525M3, External Grooving Toolholder

SKU:
THC04640
|
UPC:
4960664009275
$200.41
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGAR 2525M3, Right-Hand, External Grooving Toolholder with a 20.00mm Max Depth of Cut for Deep Grooving Applications
Additional Information
Tool Style:
KGA
Material:
Steel
Grooving Type:
External Grooving
Application:
External Deep Grooving|External Grooving
Hand:
Right-Hand

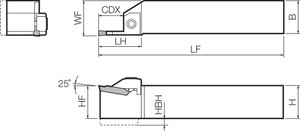

[CDX] Max Depth of Cut (mm):
20.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Deep Grooving applications
Feature 2:
Compatible with GA30 style inserts
ANSI Part Number:
KGAR2525M3
ISO Part Number:
KGAR2525M-3
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GA30
Old Material Number:
8804623
Clamp:
CGA-3R
Clamp Screw:
HH6X20
Wrench (for Clamp Screw):
LW-5
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
37.00
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.7874
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.4567
