KGBAL 2020K2225, External Grooving Toolholder

KGBAL 2020K2225, External Grooving Toolholder

SKU:
THC08159
$158.71
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGBAL 2020K2225, Left-Hand, External Grooving Toolholder with a 4.50mm Max Depth of Cut for Shallow Grooving Applications
Additional Information
Tool Style:
KGBA
Material:
Steel
Grooving Type:
External Grooving
Application:
Shallow Grooving
Hand:
Left-Hand

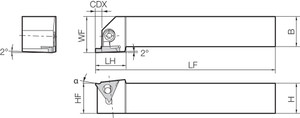

[CDX] Max Depth of Cut (mm):
4.50
[CWN] Cutting Width Minimum (mm):
2.39
[CWX] Cutting Width Maximum (mm):
3.30
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Uses economical inserts with 3 cutting edges
Feature 2:
Large lineup of chipbreakers and insert grades to choose from
Feature 3:
Smooth chip control and various applications
Feature 4:
Compatible with GBA43L... Inserts
ANSI Part Number:
KGBAL2020K2225
ISO Part Number:
KGBAL2020K22-25
Compatible Inserts (Partial):
GBA43L…
Old Material Number:
8812198
Clamp Set:
LGBA-22RS
Wrench (for Clamp Screw):
FT-15
[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
25.50
[CW] Cutting Width (Decimal Inch):
0.0941 - 0.1299
[CW] Cutting Width (mm):
2.39 - 3.30
[CDX] Max Depth of Cut (Decimal Inch):
0.1772
[CWN] Cutting Width Minimum (Decimal Inch):
0.0941
[CWX] Cutting Width Maximum (Decimal Inch):
0.1299
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.0039
