KGBAR 2020H2225, External Grooving Toolholder
KGBAR 2020H2225, Right-Hand, External Grooving Toolholder with a 4.50mm Max Depth of Cut for Shallow Grooving Applications
- Tool Style:
- KGBA
- Material:
- Steel
- Grooving Type:
- External Grooving
- Application:
- Shallow Grooving
- Hand:
- Right-Hand

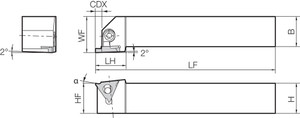

- [CDX] Max Depth of Cut (mm):
- 4.50
- [CWN] Cutting Width Minimum (mm):
- 0.50
- [CWX] Cutting Width Maximum (mm):
- 3.00
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Lever Lock / Lock Pin
- Unit (inch/mm):
- mm
- Feature 1:
- Uses economical inserts with 3 cutting edges
- Feature 2:
- Large lineup of chipbreakers and insert grades to choose from
- Feature 3:
- Smooth chip control and various applications
- Feature 4:
- Compatible with GBA43R... Inserts
- ANSI Part Number:
- KGBAR2020H2225
- ISO Part Number:
- KGBAR2020H22-25
- Compatible Inserts (Partial):
- GBA43R…
- Old Material Number:
- 8845481
- Clamp Set:
- LGBA-22RS
- Wrench (for Clamp Screw):
- FT-15
- [LF] Functional Length (mm):
- 100.00
- [LH] Head Length (mm):
- 25.50
- [CW] Cutting Width (Decimal Inch):
- 0.0197 - 0.1181
- [CW] Cutting Width (mm):
- 0.50 - 3.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.1772
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0197
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1181
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 3.9370
- [LH] Head Length (Decimal Inch):
- 1.0039
