KGBAR 2020K2215JCT, Coolant-Through External Grooving Toolholder
$226.03
(No reviews yet)
Write a Review
KGBAR 2020K2215JCT, Coolant-Through External Grooving Toolholder
KGBAR 2020K2215JCT, Coolant Through, Right-Hand, External Grooving Toolholder with a 4.00mm Max Depth of Cut for Shallow Grooving Applications
- Tool Style:
- KGBA
- Material:
- Steel
- Grooving Type:
- External Grooving
- Application:
- Shallow Grooving
- Hand:
- Right-Hand

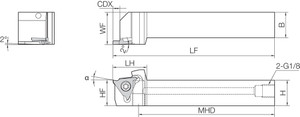

- [CDX] Max Depth of Cut (mm):
- 4.00
- [CWN] Cutting Width Minimum (mm):
- 0.33
- [CWX] Cutting Width Maximum (mm):
- 3.00
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Coolant Pressure Resistance (psi):
- 4,350
- Feature 1:
- Coolant is discharged to the cutting edge and prevents coolant stream spreading which slows the coolant flow
- Feature 2:
- Sufficient coolant between the chipbreaker and the chips for table chip curls and sufficient cooling of the insert
- Feature 3:
- Internal high pressure coolant system provides better corner wear resistance
- Feature 4:
- Compatible with GBA43R... Inserts
- ANSI Part Number:
- KGBAR2020K2215JCT
- ISO Part Number:
- KGBAR2020K22-15JCT
- US Stock:
- 0
- Worldwide Stock:
- 2
- Compatible Inserts (Partial):
- GBA43R…
- Old Material Number:
- 8863944
- Insert Screw:
- SB-5085TR
- Plug 1:
- HSG1/8x8.0
- Wrench (for Insert Screw):
- LTW-20
- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 26.50
- [CW] Cutting Width (Decimal Inch):
- 0.0130 - 0.1181
- [CW] Cutting Width (mm):
- 0.33 - 3.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.1575
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0130
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1181
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 1.0433
