KGBASR 2020K2225T5, External Grooving Toolholder
$183.78
(No reviews yet)
Write a Review
KGBASR 2020K2225T5, External Grooving Toolholder
KGBASR 2020K2225T5, Right-Hand, External Grooving Toolholder with a 5.50mm Max Depth of Cut for Shallow Grooving Applications
- Tool Style:
- KGBAS
- Material:
- Steel
- Grooving Type:
- External Grooving
- Application:
- Shallow Grooving
- Hand:
- Right-Hand

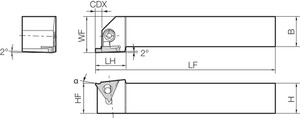

- [CDX] Max Depth of Cut (mm):
- 5.50
- [CWN] Cutting Width Minimum (mm):
- 2.39
- [CWX] Cutting Width Maximum (mm):
- 3.30
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Lever Lock / Lock Pin
- Unit (inch/mm):
- mm
- Feature 1:
- 90 degree toolholder design
- Feature 2:
- Uses economical inserts with 3 cutting edges
- Feature 3:
- Large lineup of chipbreakers and insert grades to choose from
- Feature 4:
- smooth chip control and various applications
- Feature 5:
- Compatible with GBA43L... Inserts
- ANSI Part Number:
- KGBASR2020K2225T5
- ISO Part Number:
- KGBASR2020K22-25T5
- Compatible Inserts (Partial):
- GBA43L…
- Old Material Number:
- 8835891
- Clamp Set:
- LGBA-22LS
- Wrench (for Clamp Screw):
- FT-15
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 25.00
- [CW] Cutting Width (Decimal Inch):
- 0.0941 - 0.1299
- [CW] Cutting Width (mm):
- 2.39 - 3.30
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.2165
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0941
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1299
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 0.9843
- Series Description (PeopleSoft):
- GBA Grooving
- Series Description:
- GBA Grooving
