KGBR 2525M16, External Grooving Toolholder

KGBR 2525M16, External Grooving Toolholder

SKU:
THC04225
|
UPC:
4960664047086
$192.08
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGBR 2525M16, Right-Hand, External Grooving Toolholder with a 2.50mm Max Depth of Cut for Shallow Grooving Applications
Additional Information
Tool Style:
KGB
Material:
Steel
Grooving Type:
External Grooving
Application:
Shallow Grooving
Hand:
Right-Hand

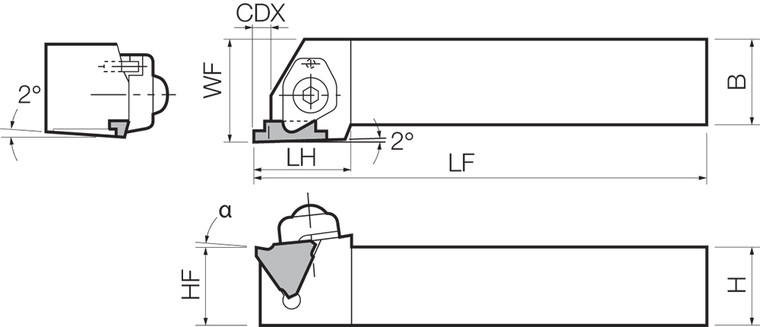

[CDX] Max Depth of Cut (mm):
2.50
[CWN] Cutting Width Minimum (mm):
0.33
[CWX] Cutting Width Maximum (mm):
3.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Shallow Grooving applications
Feature 2:
Compatible with GBA32R... style inserts
ANSI Part Number:
KGBR2525M16
ISO Part Number:
KGBR2525M-16
US Stock:
0
Worldwide Stock:
35
Compatible Inserts (Partial):
GBA32R…
Old Material Number:
8806326
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
25.50
[CW] Cutting Width (Decimal Inch):
0.0130 - 0.1181
[CW] Cutting Width (mm):
0.33 - 3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.0984
[CWN] Cutting Width Minimum (Decimal Inch):
0.0130
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.0039
