KGBSL 2525M2225, External Grooving Toolholder

KGBSL 2525M2225, External Grooving Toolholder

SKU:
THC04540
|
UPC:
4960664009176
$200.41
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGBSL 2525M2225, Left-Hand, External Grooving Toolholder with a 4.50mm Max Depth of Cut for Shallow Grooving Applications
Additional Information
Tool Style:
KGBS
Material:
Steel
Grooving Type:
External Grooving
Application:
Shallow Grooving
Hand:
Left-Hand
[CDX] Max Depth of Cut (mm):
4.50
[CWN] Cutting Width Minimum (mm):
2.39
[CWX] Cutting Width Maximum (mm):
3.30
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Great for various Shallow Grooving applications
Feature 2:
Compatible with GBA43R... style inserts
ANSI Part Number:
KGBSL2525M2225
ISO Part Number:
KGBSL2525M22-25
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GBA43R…
Old Material Number:
8801573

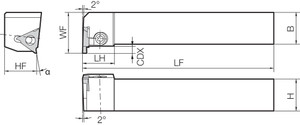

[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
25.00
Product Notes:
Right-hand Insert for Left-hand Toolholder
[CW] Cutting Width (Decimal Inch):
0.0941 - 0.1299
[CW] Cutting Width (mm):
2.39 - 3.30
[CDX] Max Depth of Cut (Decimal Inch):
0.1772
[CWN] Cutting Width Minimum (Decimal Inch):
0.0941
[CWX] Cutting Width Maximum (Decimal Inch):
0.1299
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
0.9843
Series Description (PeopleSoft):
KGB Grooving
Series Description:
KGB Grooving
