KGDFL 2355DC, Face Grooving Blade

KGDFL 2355DC, Face Grooving Blade

SKU:
THT04597
|
UPC:
4960664633067
$146.25
(No reviews yet)
Width:
1.97 (in)
Height:
0.39 (in)
Depth:
3.15 (in)
Current Stock:
Adding to cart… The item has been added
Description

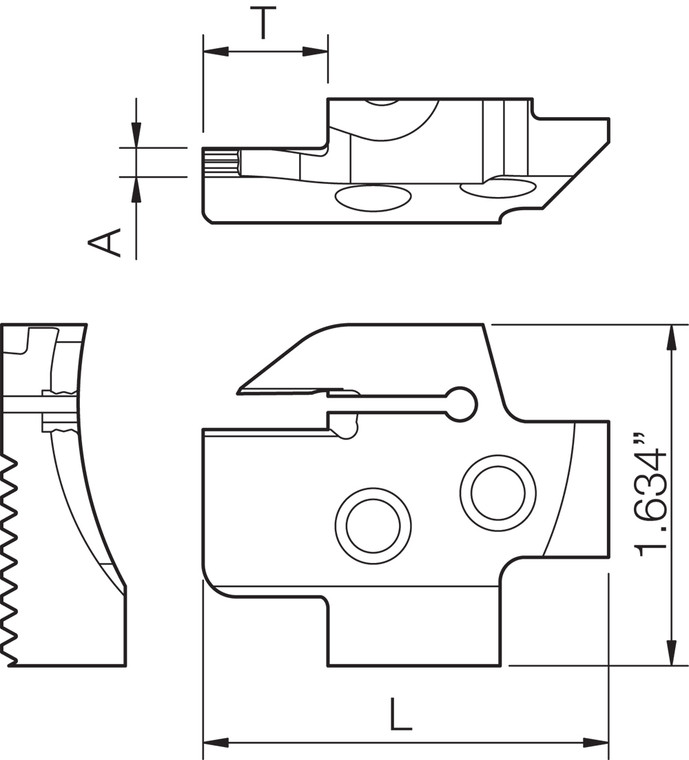

KGDFL 2355DC, Left-Hand, Switchblade Style, Face Grooving Blade with a 9.2520" Minimum Face Groove Diameter for Face Grooving Applications
Additional Information
Tool Style:
KGDF
Material:
Steel
Grooving Type:
Face Grooving
Application:
Face Grooving
Hand:
Left-Hand
[CDX] Max Depth of Cut (mm):
32.00
[CWN] Cutting Width Minimum (mm):
5.00
[CWX] Cutting Width Maximum (mm):
5.00
[DAXN] Minimum Face Groove Diameter (mm):
235.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
No Maximum
[DAXX] Maximum Face Groove Diameter (mm):
No Maximum
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Good chip control with a wide range of chipbreakers available
Feature 2:
MEGACOAT coating technology for long tool life and high efficiency machining
Feature 3:
High clamping strength prevents abnormal machining surface and / or insert breakage resulting from slip of insert
ANSI Part Number:
KGDFL2355DC
ISO Part Number:
KGDFL-235-5D-C
US Stock:
0
Worldwide Stock:
7
Compatible Inserts (Partial):
GDFM5020N…
Old Material Number:
8834656
Compatible Toolholder (Partial):
KGDR....-C, KGDSR....-C
[CW] Cutting Width (Decimal Inch):
0.1969
[CW] Cutting Width (mm):
5.00
[CDX] Max Depth of Cut (Decimal Inch):
1.2598
[CWN] Cutting Width Minimum (Decimal Inch):
0.1969
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
9.2520
