KGDFR 2020K504BZ, Face Grooving Toolholder

KGDFR 2020K504BZ, Face Grooving Toolholder

SKU:
THT05310
|
UPC:
4960664695898
$236.40
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDFR 2020K504BZ, Right-Hand, Integral Style, Face Grooving Toolholder with a 15.00mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
KGDF
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
15.00
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
4.00
[DAXN] Minimum Face Groove Diameter (mm):
50.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
2.7559
[DAXX] Maximum Face Groove Diameter (mm):
70.00
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Good Chip Control
Feature 2:
MEGACOAT Coating Technology for Long Tool Life and High Efficiency Machining
Feature 3:
Wide Range of Chipbreakers Available for Face Grooving
Feature 4:
High Clamping Strength - Prevents abnormal machining surface and / or insert breakage resulting from slip of insert
Feature 5:
Compatible with Neutral GDFM4020N…, GDFMS4020N Inserts
ANSI Part Number:
KGDFR2020K504BZ
ISO Part Number:
KGDFR2020K50-4B-Z
US Stock:
4
Worldwide Stock:
0
Compatible Inserts (Partial):
GDFM4020N…, GDFMS4020N
Old Material Number:
8839034
Clamp Screw:
HH5X16
Wrench (for Clamp Screw):
LW-4

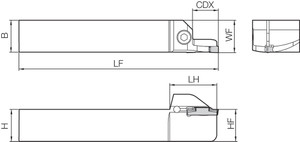

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
30.50
[CW] Cutting Width (Decimal Inch):
0.1575
[CW] Cutting Width (mm):
4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.5906
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
1.9685
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.2008
