KGDFR 2020X252AS, Face Grooving Toolholder

KGDFR 2020X252AS, Face Grooving Toolholder

SKU:
THT03984
|
UPC:
4960664661350
$299.07
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDFR 2020X252AS, Left-Hand, Switchblade Style, Face Grooving Toolholder with a 6.00mm Max Depth of Cut for Face Grooving Applications
Additional Information
Tool Style:
KGDF
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Left-Hand

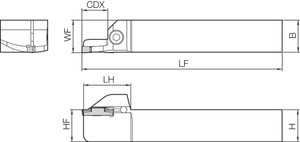

[CDX] Max Depth of Cut (mm):
6.00
[CWN] Cutting Width Minimum (mm):
2.00
[CWX] Cutting Width Maximum (mm):
2.00
[DAXN] Minimum Face Groove Diameter (mm):
25.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
1.1811
[DAXX] Maximum Face Groove Diameter (mm):
30.00
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Good Chip Control
Feature 2:
MEGACOAT Coating Technology for Long Tool Life and High Efficiency Machining
Feature 3:
Wide Range of Chipbreakers Available for Face Grooving
Feature 4:
High Clamping Strength - Prevents abnormal machining surface and / or insert breakage resulting from slip of insert
Feature 5:
Compatible with Neutral GDFM2020N… Inserts
ANSI Part Number:
KGDFR2020X252AS
ISO Part Number:
KGDFR2020X25-2AS
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GDFM2020N…
Old Material Number:
8842131
Clamp Screw:
BH6X10TR
Blade Screw:
SB-60120TR
Wrench (for Clamp Screw):
LTW-25
Compatible Blade (Partial):
KGDFR252AC
Compatible Toolholder (Partial):
KGDL2020C
[LF] Functional Length (mm):
115.00
[LH] Head Length (mm):
33.00
[CW] Cutting Width (Decimal Inch):
0.0787
[CW] Cutting Width (mm):
2.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2362
[CWN] Cutting Width Minimum (Decimal Inch):
0.0787
[CWX] Cutting Width Maximum (Decimal Inch):
0.0787
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
0.9843
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.5276
[LH] Head Length (Decimal Inch):
1.2992
