KGDFR 2525M755BZ, Face Grooving Toolholder

KGDFR 2525M755BZ, Face Grooving Toolholder

SKU:
THT05352
|
UPC:
4960664696178
$268.43
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDFR 2525M755BZ, Right-Hand, Integral Style, Face Grooving Toolholder with a 15.00mm Max Depth of Cut for Face Grooving Applications
Additional Information

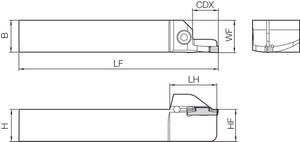

Tool Style:
KGDF
Material:
Steel
Grooving Type:
External Face Grooving
Application:
Face Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
15.00
[CWN] Cutting Width Minimum (mm):
5.00
[CWX] Cutting Width Maximum (mm):
5.00
[DAXN] Minimum Face Groove Diameter (mm):
75.00
[DAXX] Maximum Face Groove Diameter (Decimal Inch):
4.5276
[DAXX] Maximum Face Groove Diameter (mm):
115.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Top Clamp
Unit (inch/mm):
mm
Feature 1:
Good Chip Control
Feature 2:
MEGACOAT Coating Technology for Long Tool Life and High Efficiency Machining
Feature 3:
Wide Range of Chipbreakers Available for Face Grooving
Feature 4:
High Clamping Strength - Prevents abnormal machining surface and / or insert breakage resulting from slip of insert
Feature 5:
Compatible with Neutral GDFM5020N…, GDFMS5020N… Inserts
ANSI Part Number:
KGDFR2525M755BZ
ISO Part Number:
KGDFR2525M75-5B-Z
US Stock:
0
Worldwide Stock:
3
Compatible Inserts (Partial):
GDFM5020N…, GDFMS5020N…
Old Material Number:
8839054
Clamp Screw:
HH5X16
Wrench (for Clamp Screw):
LW-4
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
30.50
[CW] Cutting Width (Decimal Inch):
0.1969
[CW] Cutting Width (mm):
5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.5906
[CWN] Cutting Width Minimum (Decimal Inch):
0.1969
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
[DAXN] Minimum Face Groove Diameter (Decimal Inch):
2.9528
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.2008
