KGDL 124T20, External Grooving Toolholder

KGDL 124T20, External Grooving Toolholder

SKU:
THT05089
|
UPC:
4960664636891
$175.37
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDL 124T20, Left-Hand, External Grooving Toolholder with a 0.7874" Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Left-Hand

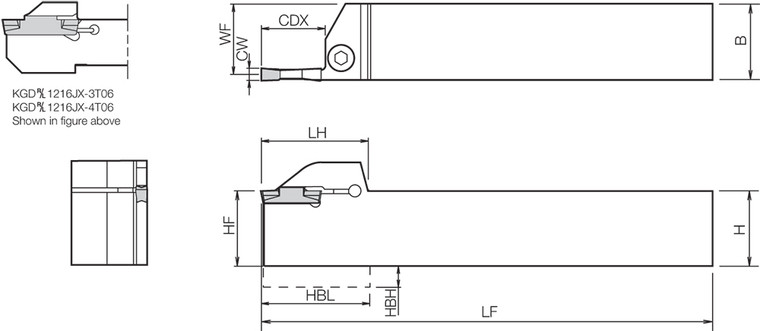

[CDX] Max Depth of Cut (mm):
20.00
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
5.00
[H] Shank Height (mm):
19.05
[B] Shank Width (mm):
19.05
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM4…, GDMS4…, GDG4…, GDGS4…, GDM5…, GDMS5…, GDG5…, GDGS5… Inserts
ANSI Part Number:
KGDL124T20
ISO Part Number:
KGDL12-4T20
US Stock:
10
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM4…, GDMS4…, GDG4…, GDGS4…, GDM5…, GDMS5…, GDG5…, GDGS5…
Old Material Number:
8834757
Clamp Screw:
HH5X16
Wrench (for Clamp Screw):
LW-4
Tightening Torque:
6.5 Nm
[LF] Functional Length (mm):
124.97
[LH] Head Length (mm):
34.29
[CW] Cutting Width (Decimal Inch):
0.1575 - 0.1969
[CW] Cutting Width (mm):
4.00 - 5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.7874
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
[H] Shank Height (Decimal Inch):
0.7500
[B] Shank Width (Decimal Inch):
0.7500
[LF] Functional Length (Decimal Inch):
4.9201
[LH] Head Length (Decimal Inch):
1.3500
