KGDL 12X3T10S, External Grooving Toolholder

KGDL 12X3T10S, External Grooving Toolholder

SKU:
THT05005
|
UPC:
4960664636570
$200.22
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDL 12X3T10S, Left-Hand, External Grooving Toolholder with a 0.3937" Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD-S
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Left-Hand

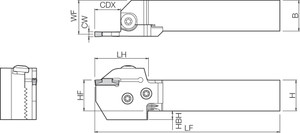

[CDX] Max Depth of Cut (mm):
10.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
4.00
[H] Shank Height (mm):
19.05
[B] Shank Width (mm):
19.05
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
High rigidity SwitchBlade style holder
Feature 2:
‌Adaptable to a wide range of applications by swapping out blades
Feature 3:
Various edge widths and cutting depths can be achieved by changing the blade and toolholder combination
Feature 4:
Compatible with GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4… Inserts
ANSI Part Number:
KGDL12X3T10S
ISO Part Number:
KGDL12X-3T10S
US Stock:
5
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4…
Old Material Number:
8835174
Clamp Screw:
BH6X10TR
Blade Screw:
SB-60120TR
Wrench (for Clamp Screw):
LTW-25
Compatible Blade (Partial):
KGDL-3T10-C
Compatible Toolholder (Partial):
KGDL12-C
[LF] Functional Length (mm):
115.06
[LH] Head Length (mm):
33.00
[CW] Cutting Width (Decimal Inch):
0.1181 - 0.1575
[CW] Cutting Width (mm):
3.00 - 4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.3937
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
[H] Shank Height (Decimal Inch):
0.7500
[B] Shank Width (Decimal Inch):
0.7500
[LF] Functional Length (Decimal Inch):
4.5299
[LH] Head Length (Decimal Inch):
1.2992
