KGDL 3T10C, External Grooving & Cut-Off Blade

KGDL 3T10C, External Grooving & Cut-Off Blade

SKU:
THT03557
|
UPC:
4960664609826
$98.75
(No reviews yet)
Width:
2.21 (in)
Height:
0.87 (in)
Depth:
2.21 (in)
Current Stock:
Adding to cart… The item has been added
Description

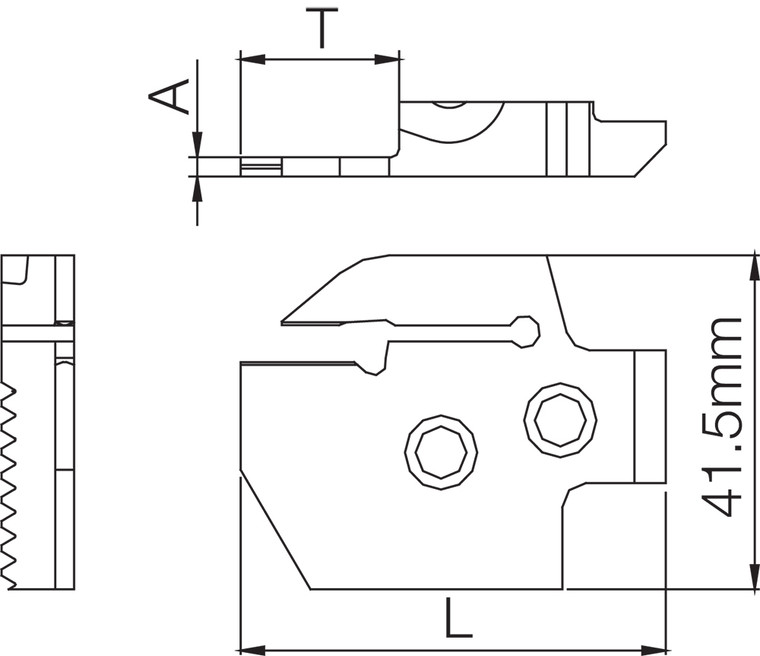

KGDL 3T10C SwitchBlade Style, Left-Hand Grooving & Cut-Off Blade with a 10mm Max. Groove Depth for External Grooving, Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Left-Hand
[CDX] Max Depth of Cut (mm):
10.20
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
4.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Left-Hand Blade
Feature 2:
Application: External Grooving, Cut-Off
Feature 3:
Clamp Screw Insert Holding Design
Feature 4:
Compatible with KGDL…C, KGDSR…C Toolholders
Feature 5:
Compatible with Left-Hand GDM3…, GDMS3…, GDG3…, GDM4…, GDMS4…, GDG4… Inserts
ANSI Part Number:
KGDL3T10C
ISO Part Number:
KGDL-3T10-C
US Stock:
4
Worldwide Stock:
25
Compatible Inserts (Partial):
GDM3…, GDMS3…, GDG3…, GDM4…, GDMS4…, GDG4…
Old Material Number:
8834775
Compatible Toolholder (Partial):
KGDL…C, KGDSR…C
[CW] Cutting Width (Decimal Inch):
0.1181 - 0.1575
[CW] Cutting Width (mm):
3.00 - 4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.4016
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
