KGDL 615JX, External Grooving Toolholder

KGDL 615JX, External Grooving Toolholder

SKU:
THT05185
|
UPC:
4960664687671
$165.35
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDL 615JX, Left-Hand, External Grooving Toolholder with a 0.3937" Max Depth of Cut for Small Diameter Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving|Small Parts Machining
Hand:
Left-Hand
[CDX] Max Depth of Cut (mm):
10.00
[CWN] Cutting Width Minimum (mm):
1.50
[CWX] Cutting Width Maximum (mm):
1.50
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
0.7874
[CUTDIA] Maximum Cut-Off Diameter (mm):
20.00
[H] Shank Height (mm):
9.53
[B] Shank Width (mm):
9.525
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM15… Inserts
ANSI Part Number:
KGDL615JX
ISO Part Number:
KGDL6-1.5JX
US Stock:
5
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM15…
Old Material Number:
8838324
Clamp Screw:
SB-40120TR
Wrench (for Clamp Screw):
LTW-15S

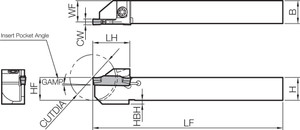

[LF] Functional Length (mm):
120.65
[LH] Head Length (mm):
18.00
[CW] Cutting Width (Decimal Inch):
0.0591
[CW] Cutting Width (mm):
1.50
[CDX] Max Depth of Cut (Decimal Inch):
0.3937
[CWN] Cutting Width Minimum (Decimal Inch):
0.0591
[CWX] Cutting Width Maximum (Decimal Inch):
0.0591
[H] Shank Height (Decimal Inch):
0.3752
[B] Shank Width (Decimal Inch):
0.3750
[LF] Functional Length (Decimal Inch):
4.7500
[LH] Head Length (Decimal Inch):
0.7087
