KGDR 1024JX, External Grooving Toolholder

KGDR 1024JX, External Grooving Toolholder

SKU:
THT05172
|
UPC:
4960664664184
$171.59
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 1024JX, Right-Hand, External Grooving Toolholder with a 0.6299" Max Depth of Cut for Small Diameter Grooving and Cut-Off Applications

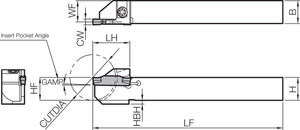

Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving|Small Parts Machining
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
16.00
[CWN] Cutting Width Minimum (mm):
2.40
[CWX] Cutting Width Maximum (mm):
3.00
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
1.2598
[CUTDIA] Maximum Cut-Off Diameter (mm):
32.00
[H] Shank Height (mm):
15.88
[B] Shank Width (mm):
15.875
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM2…, GDMS2…, GDG2…, GDGS2…, GDM3…, GDMS3…, GDG3…, GDGS3… Inserts
ANSI Part Number:
KGDR1024JX
ISO Part Number:
KGDR10-2.4JX
US Stock:
4
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM2…, GDMS2…, GDG2…, GDGS2…, GDM3…, GDMS3…, GDG3…, GDGS3…
Old Material Number:
8837363
Clamp Screw:
SB-40120TR
Wrench (for Clamp Screw):
LTW-15S
[LF] Functional Length (mm):
120.65
[LH] Head Length (mm):
24.50
[CW] Cutting Width (Decimal Inch):
0.0945 - 0.1181
[CW] Cutting Width (mm):
2.40 - 3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.6299
[CWN] Cutting Width Minimum (Decimal Inch):
0.0945
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.6252
[B] Shank Width (Decimal Inch):
0.6250
[LF] Functional Length (Decimal Inch):
4.7500
[LH] Head Length (Decimal Inch):
0.9646
