KGDR 1216JX3T06, External Grooving Toolholder

KGDR 1216JX3T06, External Grooving Toolholder

SKU:
THT05400
|
UPC:
4960664775613
$156.59
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 1216JX3T06, Right-Hand, External Grooving Toolholder with a 6.00mm Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Right-Hand

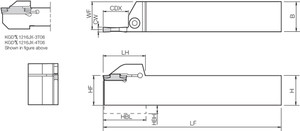

[CDX] Max Depth of Cut (mm):
6.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
4.00
[H] Shank Height (mm):
12.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4… Inserts
ANSI Part Number:
KGDR1216JX3T06
ISO Part Number:
KGDR1216JX-3T06
US Stock:
4
Worldwide Stock:
9
Compatible Inserts (Partial):
GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4…
Old Material Number:
8846643
Clamp Screw:
SE-50125TR
Wrench (for Clamp Screw):
LTW-20
Tightening Torque:
2.5 Nm
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
19.50
[CW] Cutting Width (Decimal Inch):
0.1181 - 0.1575
[CW] Cutting Width (mm):
3.00 - 4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2362
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
[H] Shank Height (Decimal Inch):
0.4724
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.7677
