KGDR 123D42JX, External Grooving Toolholder

KGDR 123D42JX, External Grooving Toolholder

SKU:
THT05190
|
UPC:
4960664687725
$175.37
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 123D42JX, Right-Hand, External Grooving Toolholder with a 0.8268" Max Depth of Cut for Small Diameter Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving|Small Parts Machining
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
21.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
4.00
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
1.6535
[CUTDIA] Maximum Cut-Off Diameter (mm):
42.00
[H] Shank Height (mm):
19.05
[B] Shank Width (mm):
19.05
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4… Inserts
ANSI Part Number:
KGDR123D42JX
ISO Part Number:
KGDR12-3D42JX
US Stock:
2
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4…
Old Material Number:
8838329
Clamp Screw:
SE-50125TR
Wrench (for Clamp Screw):
LTW-20

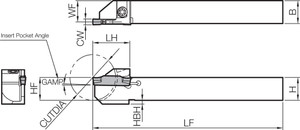

[LF] Functional Length (mm):
120.65
[LH] Head Length (mm):
31.00
[CW] Cutting Width (Decimal Inch):
0.1181 - 0.1575
[CW] Cutting Width (mm):
3.00 - 4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.8268
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
[H] Shank Height (Decimal Inch):
0.7500
[B] Shank Width (Decimal Inch):
0.7500
[LF] Functional Length (Decimal Inch):
4.7500
[LH] Head Length (Decimal Inch):
1.2205
