KGDR 124T20JCT, Coolant-Through External Grooving Toolholder

KGDR 124T20JCT, Coolant-Through External Grooving Toolholder

SKU:
THT05487
|
UPC:
4960664895878
$280.11
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 124T20JCT, Coolant Through, Right-Hand, External Grooving Toolholder with a 0.7874" Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD-JCT
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
20.00
[CWN] Cutting Width Minimum (mm):
4.00
[CWX] Cutting Width Maximum (mm):
5.00
[H] Shank Height (mm):
19.05
[B] Shank Width (mm):
19.05
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Coolant Pressure Resistance (psi):
2,175
Feature 1:
Coolant hole position and angle improve chip control
Feature 2:
Coolant is directed toward the rake surface and the flank face of the insert from both directions to lengthen tool life
Feature 3:
Several unique insert chipbreaker designs are available for external grooving, traversing and cut-off at various feet rates
Feature 4:
Compatible with GDM4…, GDMS4…, GDG4…, GDGS4…, GDM5…, GDMS5…, GDG5…, GDGS5… Inserts
ANSI Part Number:
KGDR124T20JCT
ISO Part Number:
KGDR12-4T20JCT
US Stock:
5
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM4…, GDMS4…, GDG4…, GDGS4…, GDM5…, GDMS5…, GDG5…, GDGS5…
Old Material Number:
8863838
Clamp Screw:
HH5X16
Plug 1:
HSG1/8X8.0
Wrench (for Clamp Screw):
LW-4
Tightening Torque:
6.5 Nm

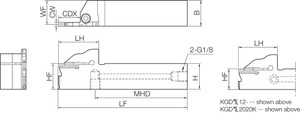

[LF] Functional Length (mm):
127.00
[LH] Head Length (mm):
38.00
[CW] Cutting Width (Decimal Inch):
0.1575 - 0.1969
[CW] Cutting Width (mm):
4.00 - 5.00
[CDX] Max Depth of Cut (Decimal Inch):
0.7874
[CWN] Cutting Width Minimum (Decimal Inch):
0.1575
[CWX] Cutting Width Maximum (Decimal Inch):
0.1969
[H] Shank Height (Decimal Inch):
0.7500
[B] Shank Width (Decimal Inch):
0.7500
[LF] Functional Length (Decimal Inch):
5.0000
[LH] Head Length (Decimal Inch):
1.4961
