KGDR 1625JX2JCTM, External Grooving Toolholder

KGDR 1625JX2JCTM, External Grooving Toolholder

SKU:
THT05506
|
UPC:
4960664982011
$340.67
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 1625JX2JCTM, Right-Hand, Coolant-Through External Grooving Toolholder with a 16.00mm Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD-JCTM
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving|Small Parts Machining
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
16.00
[CWN] Cutting Width Minimum (mm):
2.00
[CWX] Cutting Width Maximum (mm):
3.00
[CUTDIA] Maximum Cut-Off Diameter (mm):
32.00
[H] Shank Height (mm):
16.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
With Coupler (Pump Pressure: Up to 1,090 psi), Without Coupler (Pump Pressure: up to 2,900 psi)
Feature 1:

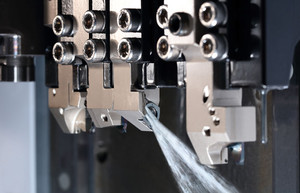

Direct Coolant-Through Holders for Small Parts Machining
Feature 2:
Supports Internal Coolant with or without Piping Systems
Feature 3:
Discharges Coolant Directly Toward the Rake Surface of Insert
Feature 4:
Compatible with Right-Hand or Neutral GDM… and GDG… Style Inserts
ANSI Part Number:
KGDR1625JX2JCTM
ISO Part Number:
KGDR1625JX-2JCTM
US Stock:
5
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM2…, GDMS2…, GDG2…, GDGS2…, GDM3…, GDMS3…, GDG3…, GDGS3…
Old Material Number:
8867229
Clamp Screw:
SB-40120TR
Plug 1:
GP-1
Plug 2:
HS5X4LP
Wrench (for Clamp Screw):
LTW-15S
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
24.50
[CW] Cutting Width (Decimal Inch):
0.0787 - 0.1181
[CW] Cutting Width (mm):
2.00 - 3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.6299
[CWN] Cutting Width Minimum (Decimal Inch):
0.0787
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.6299
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.9646
