KGDR 2012K2D34, External Grooving Toolholder

KGDR 2012K2D34, External Grooving Toolholder

SKU:
THT05358
|
UPC:
4960664766451
$175.37
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 2012K2D34, Right-Hand, External Grooving Toolholder with a 17.00mm Max Depth of Cut for Small Diameter Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving|Small Parts Machining
Hand:
Right-Hand

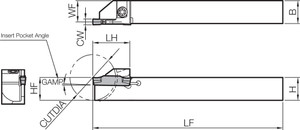

[CDX] Max Depth of Cut (mm):
17.00
[CWN] Cutting Width Minimum (mm):
2.00
[CWX] Cutting Width Maximum (mm):
3.00
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
1.3386
[CUTDIA] Maximum Cut-Off Diameter (mm):
34.00
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
12.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Improved insert clamping force generated by an innovative toolholder design
Feature 2:
Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
Feature 3:
Compatible with GDM2…, GDMS2…, GDG2…, GDGS2…, GDM3…, GDMS3…, GDG3…, GDGS3… Inserts
ANSI Part Number:
KGDR2012K2D34
ISO Part Number:
KGDR2012K-2D34
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
GDM2…, GDMS2…, GDG2…, GDGS2…, GDM3…, GDMS3…, GDG3…, GDGS3…
Old Material Number:
8846040
Clamp Screw:
HH5X16
Wrench (for Clamp Screw):
LW-4
[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
32.50
[CW] Cutting Width (Decimal Inch):
0.0787 - 0.1181
[CW] Cutting Width (mm):
2.00 - 3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.6693
[CWN] Cutting Width Minimum (Decimal Inch):
0.0787
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.2795
