KGDR 2525K3T06JCT, Coolant-Through External Grooving Toolholder

KGDR 2525K3T06JCT, Coolant-Through External Grooving Toolholder

SKU:
THT05414
|
UPC:
4960664854042
$268.17
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
KGDR 2525K3T06JCT, Coolant Through, Right-Hand, External Grooving Toolholder with a 6.00mm Max Depth of Cut for Grooving and Cut-Off Applications
Additional Information
Tool Style:
KGD-JCT
Material:
Steel
Grooving Type:
External Grooving
Application:
Cut-Off|External Grooving
Hand:
Right-Hand
[CDX] Max Depth of Cut (mm):
6.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
4.00
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Coolant Pressure Resistance (psi):
2,175
Feature 1:
Coolant hole position and angle improve chip control
Feature 2:
Coolant is directed toward the rake surface and the flank face of the insert from both directions to lengthen tool life
Feature 3:
Several unique insert chipbreaker designs are available for external grooving, traversing and cut-off at various feet rates
Feature 4:
Compatible with GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4… Inserts
ANSI Part Number:
KGDR2525K3T06JCT
ISO Part Number:
KGDR2525K-3T06JCT
US Stock:
6
Worldwide Stock:
2
Compatible Inserts (Partial):
GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4…
Old Material Number:
8860690
Clamp Screw:
HH5X25
Plug 1:
HSG1/8X8.0
Wrench (for Clamp Screw):
LW-4
Tightening Torque:
6.5 Nm

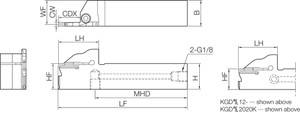

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
31.50
[CW] Cutting Width (Decimal Inch):
0.1181 - 0.1575
[CW] Cutting Width (mm):
3.00 - 4.00
[CDX] Max Depth of Cut (Decimal Inch):
0.2362
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1575
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.2402
Series Description (PeopleSoft):
KGD JCT Grooving
Series Description:
KGD JCT Grooving
